Meusburger MTS-3 Powersteering Bridge Ramps Winch!

= Additional Options and Accessories =

- Air suspension
- Central lubrication system

= Notes =

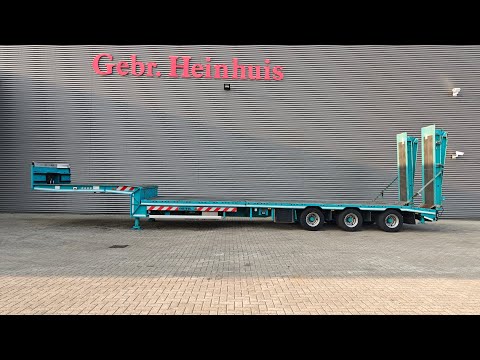

Meusburger MTS-3.
Year of manufacture: 2018.
10-ton BPW axles.
Unladen weight: 13,300 kg.
Payload: 28,200 kg.
Gross vehicle weight: 41,500 kg.
Fifth wheel load: 11,500 kg.
Forced steering (3 steerable axles).
Air suspension.
Hydraulic 2-point rear support.
Slotted floor.
Hydraulic ramp from the low-bed to the gooseneck.
- Length: 3500 mm.
Cable winch with remote control.
Remote control for steerable axles, ramps, and supports.
Toolboxes.
EBS, ABS, ALB.
Hydraulic 2-part ramps:
- Length: 2900 + 1700 mm.
- Hydraulic lateral movement (left/right).
1st axle as a lift axle.
Hydraulic supply via NATO socket of the towing vehicle.
Dimensions:
Gooseneck:
Gjdpfx Aezq Actom Tsug
L: 3800 mm.
W: 2500 mm.
H: 1400 mm.
Fifth wheel height: 1150 mm.
Loading platform:
L: 10,500 mm.
W: 2550 mm.
H: 950 mm.
Tires: 235/75R17.5 (tread depth 30–80 %).

German semi-trailer!

Dimensions of the semi-trailer:
L: 13,900 mm.
W: 2550 mm.
H: 3800 mm.

ID No.: 639.

Heinhuis's general terms and conditions apply to all advertisements, offers, and quotations from Heinhuis, as well as to all contracts concluded by Heinhuis and the negotiations preceding them. By contacting us in any way, you accept the validity of Heinhuis's general terms and conditions and declare that you have taken note of these conditions. Our prices are net export prices.

= Further Information =

Axle configuration
Tire size: 235/75R17.5
Axle brand: BPW
Suspension: Air suspension
Rear axle 1: Twin tires; Lift axle; Max. axle load: 10,000 kg; Steerable; Tire tread depth left inside: 80%; Tire tread depth left outside: 80%; Tire tread depth right inside: 80%; Tire tread depth right outside: 40%
Rear axle 2: Twin tires; Max. axle load: 10,000 kg; Steerable; Tire tread depth left inside: 80%; Tire tread depth left outside: 80%; Tire tread depth right inside: 80%; Tire tread depth right outside: 80%
Rear axle 3: Twin tires; Max. axle load: 9,998 kg; Steerable; Tire tread depth left inside: 80%; Tire tread depth left outside: 80%; Tire tread depth right inside: 30%; Tire tread depth right outside: 30%

Weights
Unladen weight: 13,300 kg
Payload: 28,200 kg
GVW: 41,500 kg

Functional
Loading platform height: 95 cm

Condition
Technical condition: very good
Optical condition: very good
Damage: none
