REISCH R24 RHKS-3-AG08 Hinterkipp Alu-Mulde 42,4m³

Reisch R24 RHKS-3-AG08 Rear Tipper Aluminum Body 42.4 m³

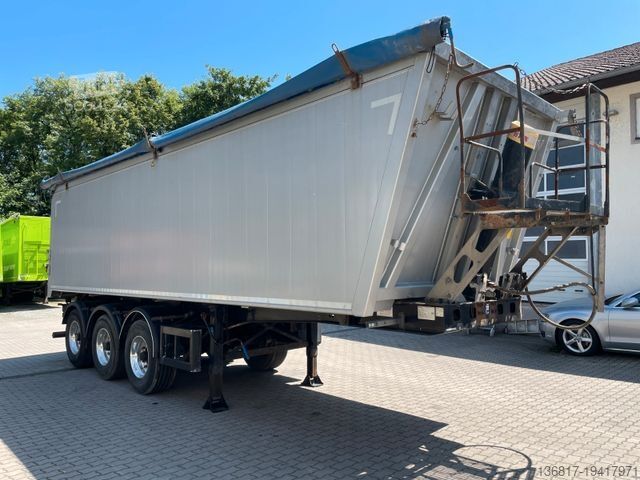

3-Axle Rear Tipper Semi-Trailer with Aluminum Body
Type R24 RHKS-3-AG08 – Rear Tailgate Mounted

### Aluminum Body / Aluminum Box Body ###
Aluminum tipping superstructure,

Capacity: approx. 42.4 m³

Saddle height: approx. 1,200 mm

Gross vehicle weight rating: 35,000 kg

Unladen weight: 4,800 kg

Payload: 30,200 kg

1st axle liftable

Roll-up tarpaulin can be placed one-sided to the right (in driving direction), with central lock on left (in driving direction)

2x Rear work lights

BPW axles

Steel standing platform with safety grating and guard rail

Rear under-run protection, foldable

2x Jost landing gears

Drum brakes

Broom and shovel holders mounted on front wall

Air suspension

Pendulum tailgate with mechanical 4-hook locking

Pendulum tailgate/rear wall sealed with rubber gasket

Side screw locks on the tailgate (2 per side)

1x Grain hatch (welded shut)

1x Storage compartment, left side

Fenders on all wheels

3x WABCO ultrasonic sensors at rear

2x 7-pin connectors

1x 15-pin connector

1x ABS connector

Cargo area dimensions LxWxH: approx. 8,500 x 2,346 x 2,000 mm

Side wall height: approx. 2,000 mm

Loading height: approx. 3,458 mm

1x Work light in cargo hold, front on bulkhead

2x Tarpaulin bows

2x Vulkollan strips left on outer side of body

External dimensions LxWxH: approx. 9,700 x 2,550 x 3,600 mm

Wheelbase: 3,990 x 1,310 x 1,310 mm

Tyres: 385/65R 22.5 on ALCOA aluminum rims

Tread depth left front: 11 mm

Tread depth left center: 6 mm

Tread depth left rear: 3 mm

Tread depth right front: 13 mm

Lsdjwuw Nxopfx Af Djah
Tread depth right center: 6 mm

Tread depth right rear: 3 mm
