Rulonvežis priekaba

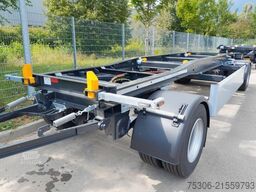

Schlittenanhänger 20 S

Equipment:

* Sled trailer 20 S
* Novagrau
* 2-axle trailer chassis for containers
* Sled configuration (20S)
* External reference length approx. 7,055 mm
* Overall width approx. 2,500 mm
* Ride height loaded approx. 1,150 mm
* Conveyor track length approx. 6,890 mm
* Wheelbase 5,240 mm
* Unladen weight (complete) approx. 3,460 kg
* Technically possible gross weight approx. 20,000 kg
* Permissible total weight approx. 18,000 kg
* Payload approx. 14,540 kg
Codpsyv Ttvofx Anrjgt
* Suitable for containers from 5,000 to 7,000 mm length according to DIN 30722
* Chassis construction from welded I-beams, QSTE steel
* 4 container locks & sliding carriage locking, pneumatically operated
* Side guard in accordance with RL 89/297/EEC (closed design)
* Bogie 980 FM incl. ball-bearing slewing ring 90/1100/22 (low-maintenance)
* Drawbar 2600/980/100/30, inclined tow eye with height adjustment (tension spring w/ turnbuckle)
* Drawbar with DIN tow eye: inside D=40mm, outside D=110mm, thickness 30mm
* 2 x 10 t axles for 19.5'' disc brakes, axle brand as per manufacturer's choice
* Brake disc diameter approx. 370mm
* Wheel fixing by hub-centric mounting to DIN 74 361 Part 3
* Compressed air brake system per EU directive with Duomatic coupling head
* Conventional air suspension
* EBS type 4S/3M, electronic braking system with ROLL Stability
* Double diaphragm spring brake cylinders on rear axle
* Release valve for separate spring brake release
* Lighting system 24 Volt full LED according to RL 76/756/EEC with multi-chamber rear light and integrated license plate light
* 1 x 15-pin connector
* 6 pcs LED side marker reflectors with indicator function
* 2 pcs LED white front marker lights
* 2 pcs separate rear lane control LED lights
* 1 additional LED reversing light
* Regional transport tyres, tyre brand at manufacturer’s choice
* 8 pcs 265/70R19.5 (7.5x19.5)
* Steel wheels, ET 138
* Unpainted wheel nuts
* Including tyre pressure monitoring
* Aluminium underride protection
* Two vertical delta impact protection profiles at rear for added protection during loading/unloading
* 4 pcs plastic fenders, half-shell design front & rear, single wheel fender
* 4 pcs neutral antispray mudflaps
* 1 lockable plastic toolbox
* 1 wheel chock with bracket
* 1 A-board for transport of waste materials
* 1 net box (hanging)
* Chassis colour: MB7350 Novagrau
* Sliding carriage: MB 7350 Novagrau
* Hub colour: black KTL
* Wheel rim colour: RAL 9006 silver
* Rear contour markings: red
* Side contour markings: white
* Closed SSE: RAL 7001 silver grey
* Rear end/light plates: RAL 7001 silver grey
* Underride bumper: aluminium anodised (silver)
* Locking hooks, container guides: yellow

All information subject to change and without guarantee. Errors excepted. Subject to prior sale.
