Žemagrindė platforma priekaba

MÜLLER-MITTELTAL 4-achs Anh. Tieflader, Klapprampe, Gummibelag

T 4 Profi 40.0

----Brakes:

* Wabco EBS-E (electronic braking system)
Fedpjylfvmjfx Afuegd
* Emergency release system for spring brake cylinders
* Drum brakes

----Axles:

* 4 x 11 ton Gigant axles

----Suspension:

* Air suspension with lifting and lowering system and rapid release valve (RtR valve)

----Drawbar:

* Straight drawbar with 50 mm drawbar eye and stepless height adjustment

----Electrical System / Lighting:

* Tire pressure monitoring system with display option in the truck display via EBS signal - without truck-side installation -
* SmartBoard as an information tool with pressure sensors for axle load display per axle group
* 15-pole power connector
* LED tail lights
* Detachable LED marker lights at the rear

----General Components:

* Warning sign packages at the front and rear
* 2 x toolboxes made of galvanized, powder-coated sheet steel, approx. 650 x 300 x 600 mm, on the right side
* Closed plastic fender at the front
* Straight steel splash guards at the rear, each with a spray guard (spray mist reduction)
* Side impact protection

----Lowboy Platform:

* Extension of the turntable platform by 520 mm with 45° corners and 3 recessed storage compartments incl. cover and lockable
* Floor over the turntable platform made of 50 mm and in the lowboy platform made of 60 mm hardwood
* 20 mm rubber coating instead of wooden floor in the running track area with a lowbed length of 6,780 mm including the ramp
* Rubber coating on the ramp on the left and right sides, approx. 860 mm long
* 4 lashing eye sockets on each side (but no lashing bars included) with simultaneous 2-ton lashing capability

----Chassis:

* Chassis made of high-strength fine-grain steel

----Load Securing (Lasi Package):

Turntable Platform:

* 2 pairs of 13.4-ton lashing eyes in the outer frame of the turntable platform

Lowbed:

* 4 pairs of 10-ton lashing rings on each side in the outer frame, retractable and loadable in all directions
* 2 pairs of 13.4-ton swiveling lashing rings at the rear on each side

----Ramps:

* Rubber coating on the folding ramps
* Hydraulic folding ramps with hydraulically extendable front section, approx. 4,650 x 720 mm
* Hydraulic side ramp adjustment & load holding valves

----Rear Support:

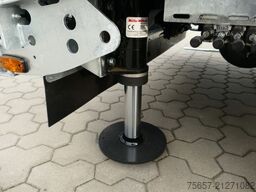

* Hydraulic rear support

----Widening:

* 8 pairs of galvanized folding outriggers for a total width of 3 m (but not in the rear ramp)
* Widening boards stored on the left side in a storage compartment

----Excavator Arm Rest:

* Excavator arm rest above the rear axle to the end of the ramp, approx. L = 2,100 mm x W = 740 x D = 190 mm
* 2 pairs of 6.4-ton lashing rings on the side in the excavator arm rest

----Hydraulics:

* Hydraulic flow divider in the trailer (with hydraulic pump output in the truck of over 40 - max. 120 liters/min.)

----Loading Dimensions:

* Rear loading area: approx. 6,780 x 2,520 mm (incl. 860 mm ramp)
* Loading area over the turntable: approx. 2,990 x 2,520 mm

----Loading Height:

* approx. 890 mm, +/- 20 mm

----Painting:

* Reflective contour strip on the side and rear,
* Chassis, turntable, ramps, and folding outriggers hot-dip galvanized
* Axles, drawbar, air tanks, and turntable painted in a black tone

----Information:

* New vehicle with manufacturer's warranty
* Errors and prior sales are subject to change

----Delivery Time:

* Immediately available from Egestorf
