GENIE S 99-12 GS 2646 Scherenbühne Elektro AH 9,85 m

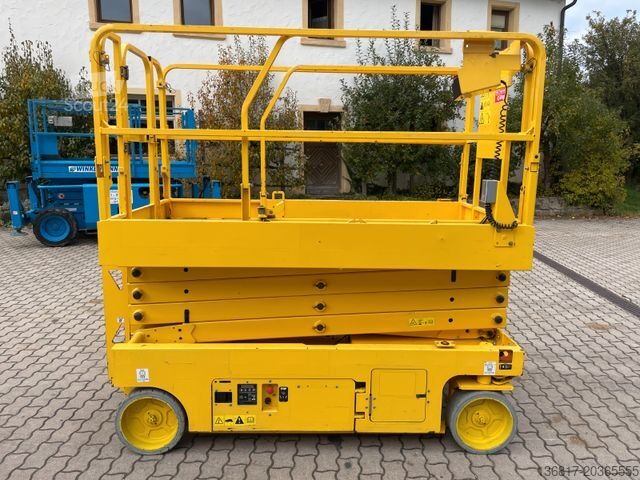

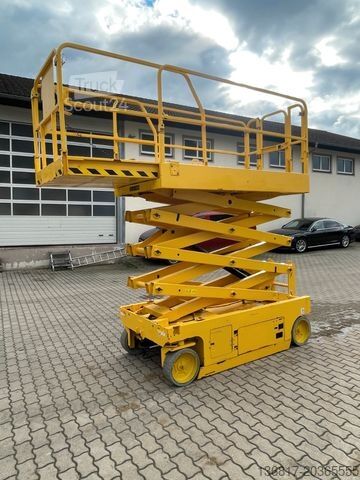

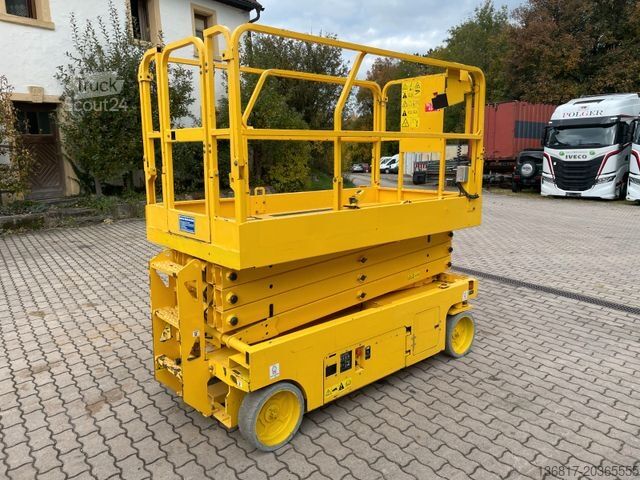

Electric Scissor Lift Genie GS 2646 / S 99-12

Working height (max.) - indoor (1): 9.85 m
Working height (max.) - outdoor (1): 7.99 m
Njdpsxquixsfx Aghslh
Platform height (max.) - indoor: 7.85 m
Platform height (max.) - outdoor: 5.99 m
Platform height - stowed: 1.27 m
Platform length - outside: 2.16 m
Platform length - extended: 3.07 m
Platform extension length: 0.91 m
Platform width - outside: 1.10 m
Guardrail height: 1.10 m
Toe board height: 15 cm
Height - stowed: 2.39 m
Height - stowed with guardrails folded: 1.70 m
Overall length: 2.50 m
Length - stowed (ladder): 2.36 m
Length - with platform extension extended: 3.35 m
Width: 1.17 m
Wheelbase: 1.78 m
Ground clearance - center, with pothole protection retracted: 13 cm
Ground clearance - with pothole protection deployed: 2 cm
Max. number of persons on platform (indoor/outdoor): 3/1
Unladen weight: 2,470 kg
Load capacity: 454 kg
Load capacity - with platform extension extended: 113 kg
Drivable up to max. platform height: 7.85 m
Drive speed - stowed: 4.0 km/h
Drive speed - raised: 0.5 km/h
Gradeability - stowed (2): 25%
Turning radius - inside/outside: 0/2.2 m
Raise/lower time: 48/30 sec.
Drive: two-wheel front-wheel drive

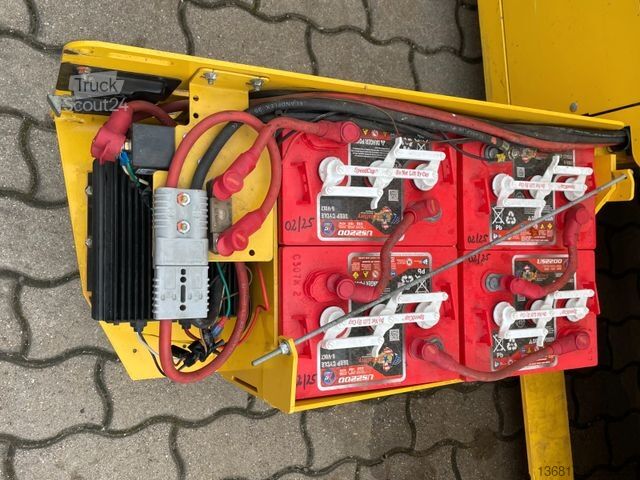

Power source: Lead-acid batteries 4x 6V 232Ah
Tyres: 15x5 Blackstone-OTR
Max. tyre load: 1,050 kg
Tyre ground pressure: 1,064 kPa
Floor load: 9.53 kPa
Noise/sound pressure level (ground):
