Bulvių technologija

Grimme SE 260 UB

SE 260 UB

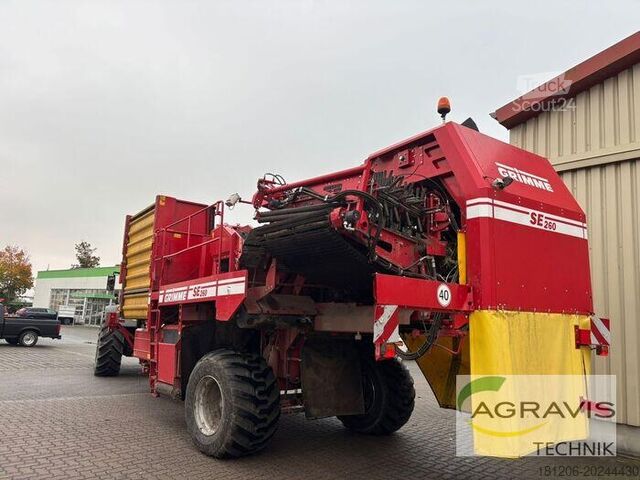

(0010) Grimme Potato Harvester, 2-row
(0020) Country-specific configuration for
(0030) Germany (pickup)
(0040) Single approval Germany
(0050) Anniversary special 10 years SE 260
(0060) Towing ball hitch Ø 80 mm
(0070) PTO shaft 1 3/8" with 6 splines
(0080) Drive with PTO speed 540 rpm
(0090) 3-speed gearbox
(0100) Row spacing 80 cm
(0110) Intake width: 620 mm
(0120) Half ridge formers with collar: Ø 390 mm

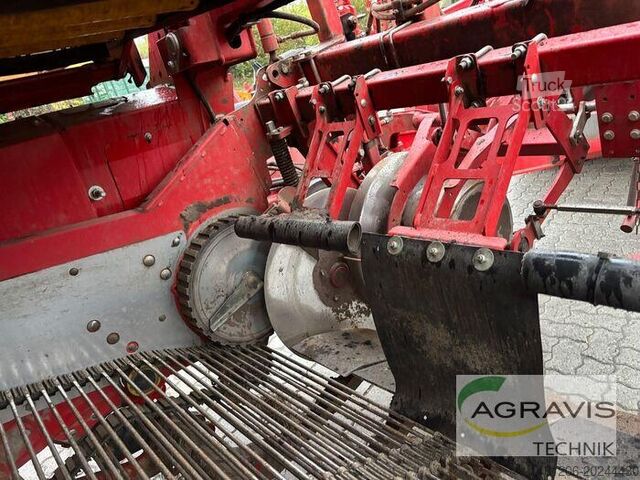

(0130) 2-blade share, long
(0140) Separately adjustable center share
(0150) in place of middle disc coulters
(0160) Stone protection for spade share
(0170) Digging depth adjustment from terminal
(0180) TerraControl
(0190) Automatic ridge centering
(0200) 2 disc coulters
(0210) Additional outer disc coulter
(0220) Web width 1700 mm
(0230) 1st web pitch 35 mm
(0240) 1st web with pin-type connection
(0250) Speed-independent friction drive 1st
(0260) Web with support roller
(0270) 1st web speed – standard
(0280) Stainless steel panels in shaker frame
(0290) Shaker on 1st web with
(0300) Speed adjustment from terminal
(0310) 2nd web pitch 32 mm
(0320) 2nd web with pin-type connection
(0330) Speed-independent friction drive 2nd
(0340) Web
(0350) Coarse haulm belt spacing 200 mm
(0360) Front return spring for coarse haulm belt
(0370) "Standard" version
(0380) 2 additional scrapers for
(0390) Coarse haulm belt
(0400) Belt 1st separator unit pitch 45 mm
(0410) H-profile hedgehog shaft 1st separator unit
(0420) Scraper 1st separator unit
(0430) Smooth roller scraper
(0440) Incline adjustment for 1st and 2nd
(0450) Separator unit from terminal
(0460) Height adjustment of scraper roller 1st
(0470) Separator unit from terminal
(0480) Slip monitoring 1st separator unit and
(0490) 2nd web
(0500) 2nd separator unit: Hedgehog belt with rods
(0510) Belt 2nd separator unit pitch 45 mm
(0520) H-profile hedgehog shaft 2nd separator unit
(0530) Scraper 2nd separator unit
(0540) Smooth roller scraper
(0550) Speed adjustment for 2
Dkodpfx Adoxl H Trenou
(0560) Brush or finger belts from terminal
(0570) Speed adjustment 1st and 2nd
(0580) Separator unit from terminal
(0590) Height adjustment of
(0600) Left finger/brush belt from terminal
(0610) Speedtronic-Sep: Automatic
(0620) Speed control of
(0630) Separator units
(0640) Feed chute right and left
(0650) Additionally mounted
(0660) Wide picking table (930 mm)
(0670) Admixture conveyor (280 mm)
(0680) Picking belt with carriers
(0690) Roller pre-cleaning, 5 rollers, radial
(0700) Infinitely adjustable, without container
(0710) Rollers for roller pre-cleaning
(0720) Spacing 20 mm
(0730) Discharge belt from roller pre-cleaner to
(0740) Stone bunker
(0750) Admixture belt design "rod belt"
(0760) Stone bunker with discharge belt
(0770) Intake elevator with ultrasonic sensor
(0780) 6.0 t bunker
(0790) Bunker belt with canvas
(0800) Automatic bunker filling incl. automation
(0810) for intake elevator and
(0820) Fill optimization
(0830) Bunker head lowering
(0840) Air brake
(0850) Speed 40 km/h
(0860) Automatic axle centering and
(0870) Slope compensation

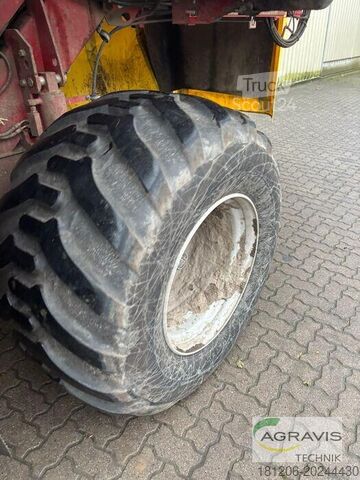

(0880) Tires 710/45-26.5
(0890) 7" monitor and multiplexer of the
(0900) Grimme video system, up to 8
(0910) cameras possible
(0920) Camera as reversing camera, mounted,
(0930) incl. lighting
(0940) Camera on 1st web, mounted, incl.
(0950) lighting
(0960) Camera transition from 1st to 2nd
(0970) separator unit, mounted, incl. lighting
