Trijų pusių savivartis priekaba

MEILLER MZDA 18.23, Pal.- Breite, Liftachse

Brake system:

* Wabco EBS-E / ABS (electronic brake system with RSS)
* Emergency release device for spring-loaded cylinders
* Drum brakes 420 x 180 mm with asbestos-free brake linings and sealed brake drums

----Axle:

* 1st axle liftable

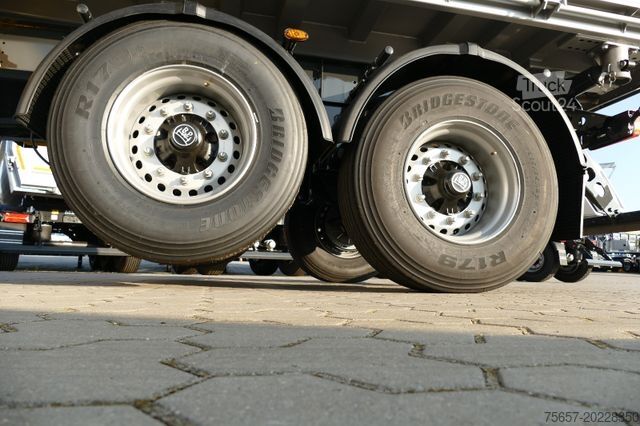

* 2 x 9 t BPW axles

----Suspension:

* Air suspension with automatic rapid lowering during tipping process to increase stability (can be deactivated for pavers)

----Electrics / Lighting:

* Tire pressure monitoring system (TPMS)
* 15-pin electrical connector
* 5-chamber tail lights with protective cover

----Drawbar / Flange eye:

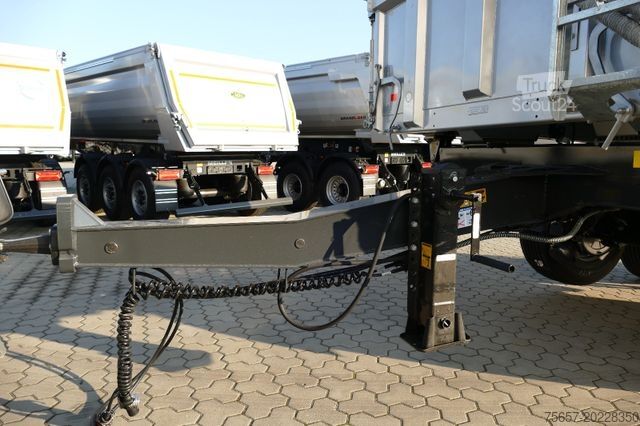

* Cranked central tube drawbar with height-adjustable 50 mm flange drawbar eye (tipping over the drawbar possible, but with restricted tipping angle and depending on the towing vehicle)

----General attachments:

* Aluminum air tank
* Welded box-type steering linkage
* Jost landing gear front
* Rear underrun protection
* Closed plastic single mudguards

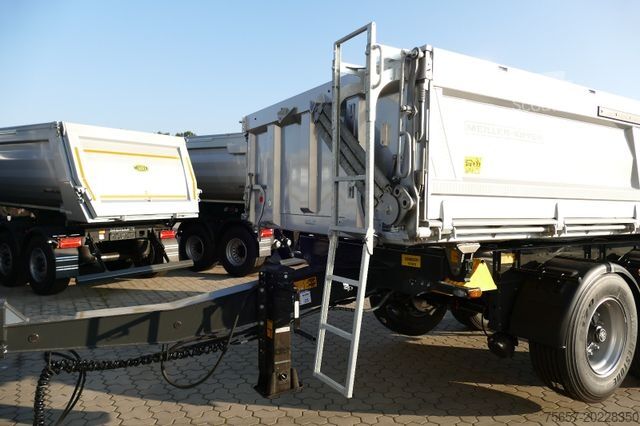

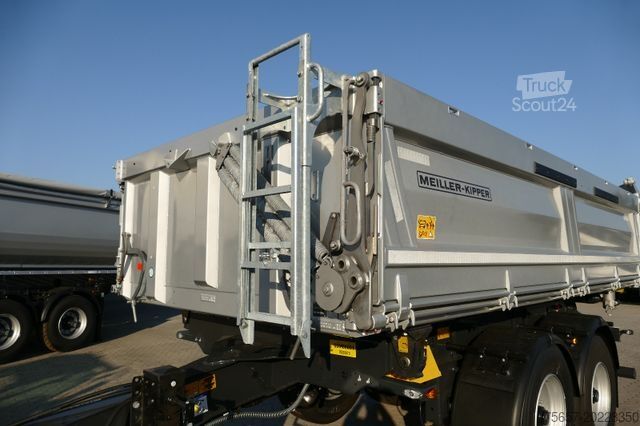

* Access ladder front left, outside on the bulkhead
Dsdpfx Asxlmi Tod Tsul

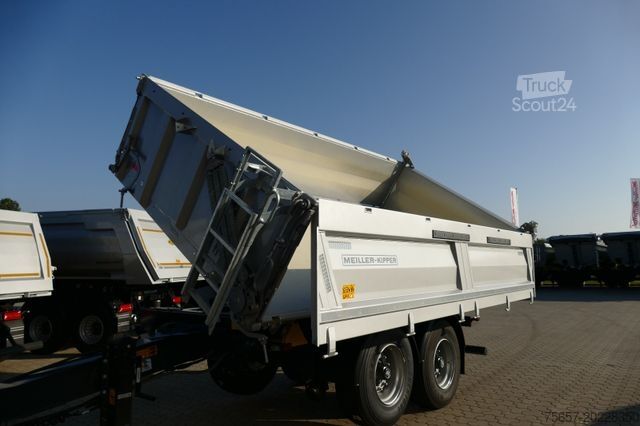

----Tipping body:

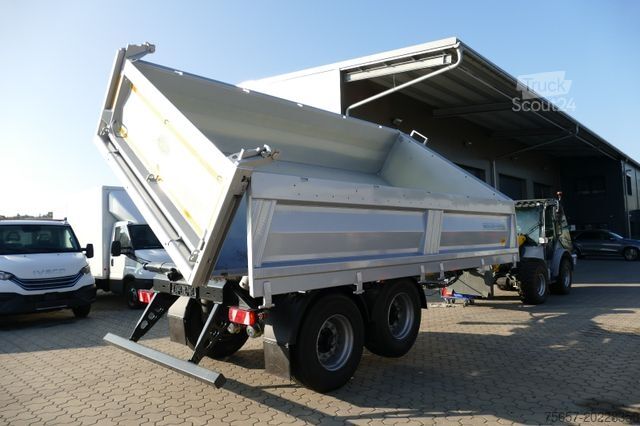

* Steel 3-way tipper body for pallets with M-Jet drop sides
* Sidewalls with robust continuous top rail inclined inward
* Continuous sidewalls - without center stanchion -
* Right sidewall swinging via manual central locking - prepared for long lever and hinges for fold-down sidewall
* Left sidewall swinging via manual central locking and foldable with drop-side spring assist

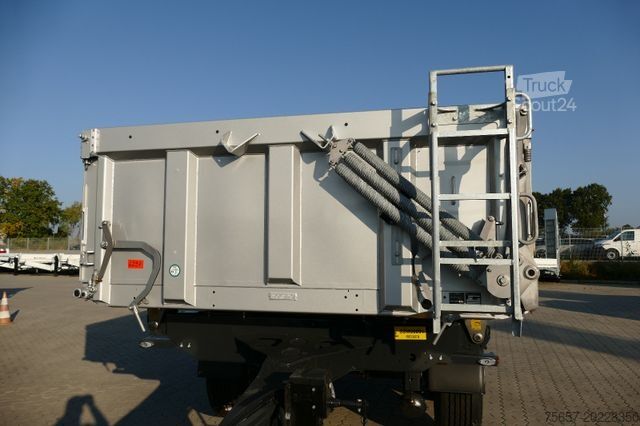

* Tailgate swinging with automatic cam lock and 150 mm rear chute
* Manual dosing system with chain

----Floor, sidewalls, front and rear wall thickness:

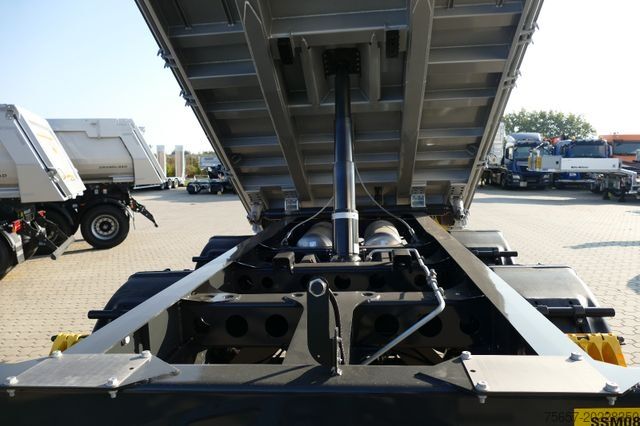

* 5 mm tipper floor made of STEELECT steel (HBW 450 steel)
* Sidewalls and tailgate made of 4 mm STEELECT steel (HBW 450 steel)
* Front wall made of 3 mm STEELECT 240 steel

----Load securing:

* 5 tie-down rings each side on the top rail, plus 5 tie-down rings per side in the floor

----Painting:

* Chassis painted in RAL 7021 black grey
* Drop side panels painted in RAL 9006 white aluminum

----General information:

* Vehicle body complies with EN 12642 XL
* New vehicle with manufacturer's warranty
* Errors and prior sale excepted

----Delivery time

* Available immediately ex Egestorf
